# Data Munging
## Data Visualisation and Analytics
### Anastasios Panagiotelis and Lauren Kennedy
### Lecture 5

---

# Data Import

---
# Data Import

- Data often stored in a single table.
--

- Columns are separated by a comma or a tab.
--

- The `readr` package is very useful for reading files into R as *data frame* objects.

---

#Data frame

- A data frame is an object with:
  + Each row corresponding to an observation or case,
  + Each column corresponding to a variable.
--

- Two types of data frames in R are:
  + The `data.frame` in base R
  + The `tibble` in the tidyverse

---

# The readr package

- Two of the more useful functions are `read_csv` and `read_tsv` for comma delimited and tab delimited files respectively.
--

- Generally the defaults for this function work quite well.
--

- One argument that is worth discussing a little is `col_types`

---

# Reading in long numbers

- The largest integer that many computers will accurately store is about 19 digits long.
--

- Some identification numbers are longer than that (for instance IBAN numbers used for bank transfers).
--

- In some cases, R may try to read these numbers in as integers.
--

- To avoid errors these should be read in as characters.

---

# Column types

- Specifying `col_types='c'` overrides the default behaviour of `readr`.
--

- You can use this to force everything to be read in as a character.
--

- If needed these can subsequently be converted to numeric variables.

---

# Getting Data

- Although data will sometimes be provided to you, it is useful to know some ways to get data off the web.
--

- This can be integrated into you R workflow.
--

- Techniques range from commands to download files to more sophisticated *web scraping*.
--

- Websites can change so always make sure to save data as well.

---

# Downloading files in R

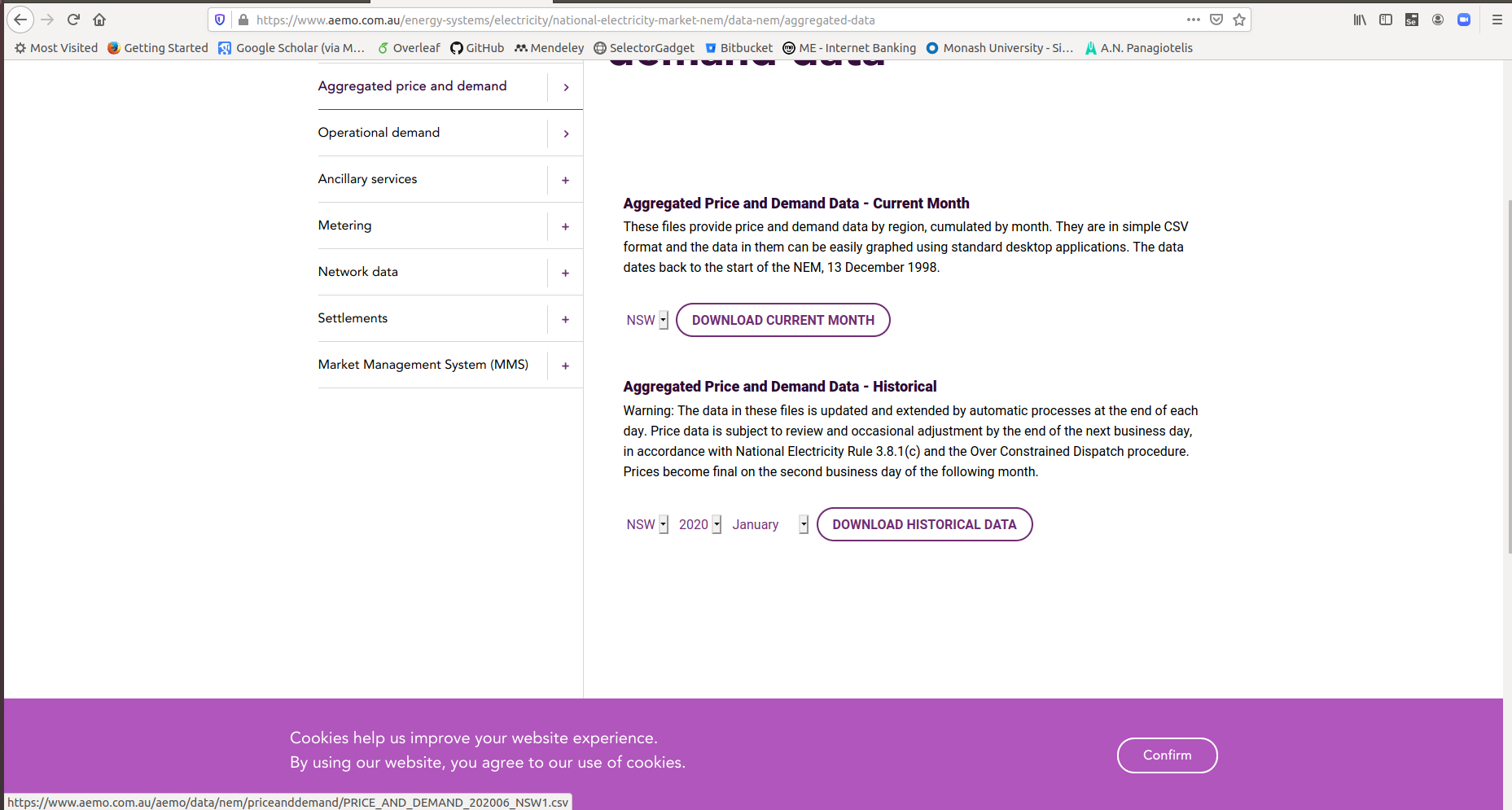

- As an example consider wholesale electricity prices which can be downloaded [online](https://www.aemo.com.au/energy-systems/electricity/national-electricity-market-nem/data-nem/aggregated-data).

Hover over download, right click and obtain link location.

---

# Downloading files in R

The `download.file` function in the `utils` package can be used to download a csv file.

```r
download.file('https://www.aemo.com.au/aemo/data/nem/priceanddemand/PRICE_AND_DEMAND_202006_NSW1.csv',
              'data/data_202006_NSW.csv')
dat<-read_csv('data/data_202006_NSW.csv')
```

The first argument is the URL the second argument is the location where you want to store the data.

---

# Benefits

- Location were data is retrieved is kept.
--

- Usually URL are created systematically.
  + Data for Victoria will have VIC as part of URL.
  + Data for May 2020 will have 202005 as part of URL.
--

- A large number of files can be downloaded and combined using a loop.

---

# Web Scraping

- Some websites do not simply include csv files in the URL.
--

- Instead the data is embedded in the html of the website itself.
--

- The R package `rvest` can be used to scrape data from websites.
--

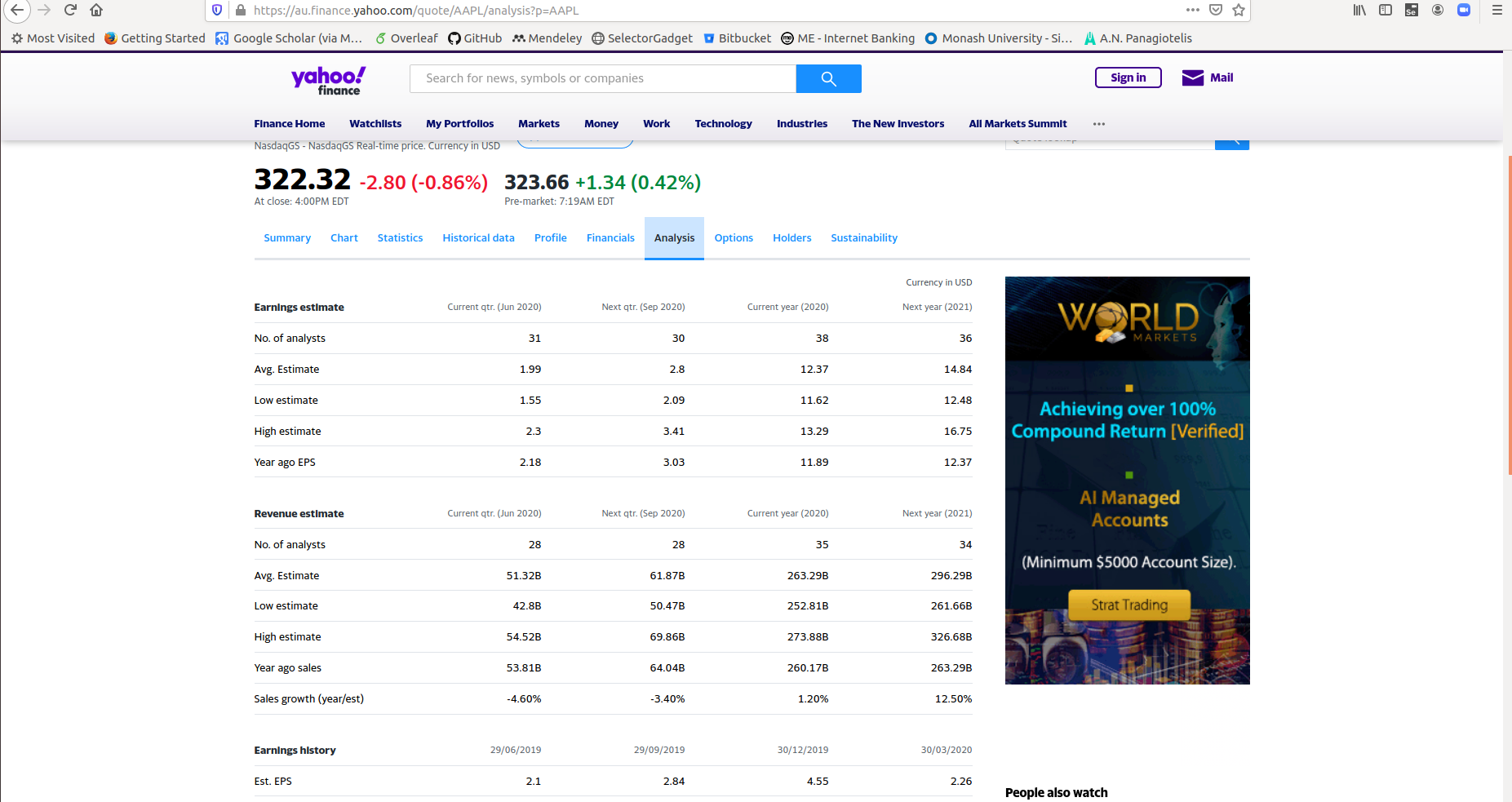

- The example on the next slides scrape data from [Yahoo Finance](https://finance.yahoo.com/quote/AAPL/analysis?p=AAPL).

---

# Data from Yahoo Finance

---

#Scrape Data

```r
library(rvest)
html<-read_html('https://au.finance.yahoo.com/quote/AAPL/analysis?p=AAPL')
tab<-html_table(html)
print(tab[[1]])
```

```
##   Earnings estimate Current qtr. (Jun 2020) Next qtr. (Sep 2020)
## 1   No. of analysts                   31.00                30.00
## 2     Avg. Estimate                    1.99                 2.80
## 3      Low estimate                    1.55                 2.09
## 4     High estimate                    2.30                 3.41
## 5      Year ago EPS                    2.18                 3.03
##   Current year (2020) Next year (2021)
## 1               38.00            36.00
## 2               12.37            14.84
## 3               11.62            12.48
## 4               13.29            16.75
## 5               11.89            12.37
```

---

# Web scraping

- This is only the tip of the iceberg
--

- Data from many websites will not be as easy to download.
--

- Some knowledge of html can be useful when using the `html_node` and `html_attr` functions.
--

- Also useful is the [Selector Gadget](https://selectorgadget.com/) tool.
--

- Comply with a website's Terms and Conditions when web scraping especially if doing so for commercial reasons.
---

# Data is messy

---

# Data

- Data rarely comes in the fomat we want:
  - May not want to use all variables,
  - May not want to use all observations,
  - May need to transform variables.

---

# A few simple functions

- Much can be done with a few simple functions from the `dplyr` package:
--

+ Choose variables with `select`
  + Choose observations with `filter`
  + Transform variables with `mutate`
--

- In all cases both input and output is a data frame.

---

# Diamonds

The diamonds data is a tibble

```r
diamonds
```

```
## # A tibble: 53,940 x 10
##    carat cut       color clarity depth table price     x     y     z
##    <dbl> <ord>     <ord> <ord>   <dbl> <dbl> <int> <dbl> <dbl> <dbl>
##  1 0.23  Ideal     E     SI2      61.5    55   326  3.95  3.98  2.43
##  2 0.21  Premium   E     SI1      59.8    61   326  3.89  3.84  2.31
##  3 0.23  Good      E     VS1      56.9    65   327  4.05  4.07  2.31
##  4 0.290 Premium   I     VS2      62.4    58   334  4.2   4.23  2.63
##  5 0.31  Good      J     SI2      63.3    58   335  4.34  4.35  2.75
##  6 0.24  Very Good J     VVS2     62.8    57   336  3.94  3.96  2.48
##  7 0.24  Very Good I     VVS1     62.3    57   336  3.95  3.98  2.47
##  8 0.26  Very Good H     SI1      61.9    55   337  4.07  4.11  2.53
##  9 0.22  Fair      E     VS2      65.1    61   337  3.87  3.78  2.49
## 10 0.23  Very Good H     VS1      59.4    61   338  4     4.05  2.39
## # … with 53,930 more rows
```

---

# Select variables

- The `select` function can be used if we only want to focus on a subset of variables.
- For the diamonds dataset we may only be interested in `carat`, `cut` and `price`.

```r
selected<-select(diamonds,carat, cut, price)
selected
```

```
## # A tibble: 53,940 x 3
##    carat cut       price
##    <dbl> <ord>     <int>
##  1 0.23  Ideal       326
##  2 0.21  Premium     326
##  3 0.23  Good        327
##  4 0.290 Premium     334
##  5 0.31  Good        335
##  6 0.24  Very Good   336
##  7 0.24  Very Good   336
##  8 0.26  Very Good   337
##  9 0.22  Fair        337
## 10 0.23  Very Good   338
## # … with 53,930 more rows
```

---

# Select variables

- To drop variables, use a `-` sign

```r
select(diamonds,-carat, -cut, -price)
```

```
## # A tibble: 53,940 x 7
##    color clarity depth table     x     y     z
##    <ord> <ord>   <dbl> <dbl> <dbl> <dbl> <dbl>
##  1 E     SI2      61.5    55  3.95  3.98  2.43
##  2 E     SI1      59.8    61  3.89  3.84  2.31
##  3 E     VS1      56.9    65  4.05  4.07  2.31
##  4 I     VS2      62.4    58  4.2   4.23  2.63
##  5 J     SI2      63.3    58  4.34  4.35  2.75
##  6 J     VVS2     62.8    57  3.94  3.96  2.48
##  7 I     VVS1     62.3    57  3.95  3.98  2.47
##  8 H     SI1      61.9    55  4.07  4.11  2.53
##  9 E     VS2      65.1    61  3.87  3.78  2.49
## 10 H     VS1      59.4    61  4     4.05  2.39
## # … with 53,930 more rows
```

---

# Filter variables

- Suppose we only want to consider diamonds worth more than $1000

```r
filter(diamonds,(price>1000))
```

```
## # A tibble: 39,416 x 10
##    carat cut       color clarity depth table price     x     y     z
##    <dbl> <ord>     <ord> <ord>   <dbl> <dbl> <int> <dbl> <dbl> <dbl>
##  1  0.7  Ideal     E     SI1      62.5    57  2757  5.7   5.72  3.57
##  2  0.86 Fair      E     SI2      55.1    69  2757  6.45  6.33  3.52
##  3  0.7  Ideal     G     VS2      61.6    56  2757  5.7   5.67  3.5
##  4  0.71 Very Good E     VS2      62.4    57  2759  5.68  5.73  3.56
##  5  0.78 Very Good G     SI2      63.8    56  2759  5.81  5.85  3.72
##  6  0.7  Good      E     VS2      57.5    58  2759  5.85  5.9   3.38
##  7  0.7  Good      F     VS1      59.4    62  2759  5.71  5.76  3.4
##  8  0.96 Fair      F     SI2      66.3    62  2759  6.27  5.95  4.07
##  9  0.73 Very Good E     SI1      61.6    59  2760  5.77  5.78  3.56
## 10  0.8  Premium   H     SI1      61.5    58  2760  5.97  5.93  3.66
## # … with 39,406 more rows
```

---

# Logical stamtents

- The term `(price>1000)` is an example of a logical statement.  It can be true or false.
--

- Other examples are
  + Price less than 1000 `(price<1000)`
  + Price less than or equal to 1000 `(price<=1000)`
  + Price not 1000 `(price!=1000)`
  + Price exactly 1000 `(price==1000)`
--

- Note **two** equals signs.
--

- In general `!` is the negation of a statement.

---

# And operator

- If two statements need to be satisfied use `&`

```r
filter(diamonds,
       (price>1000)&(cut=='Ideal'))
```

```
## # A tibble: 14,700 x 10
##    carat cut   color clarity depth table price     x     y     z
##    <dbl> <ord> <ord> <ord>   <dbl> <dbl> <int> <dbl> <dbl> <dbl>
##  1  0.7  Ideal E     SI1      62.5    57  2757  5.7   5.72  3.57
##  2  0.7  Ideal G     VS2      61.6    56  2757  5.7   5.67  3.5
##  3  0.74 Ideal G     SI1      61.6    55  2760  5.8   5.85  3.59
##  4  0.8  Ideal I     VS1      62.9    56  2760  5.94  5.87  3.72
##  5  0.75 Ideal G     SI1      62.2    55  2760  5.87  5.8   3.63
##  6  0.74 Ideal I     VVS2     62.3    55  2761  5.77  5.81  3.61
##  7  0.81 Ideal F     SI2      58.8    57  2761  6.14  6.11  3.6
##  8  0.59 Ideal E     VVS2     62      55  2761  5.38  5.43  3.35
##  9  0.8  Ideal F     SI2      61.4    57  2761  5.96  6     3.67
## 10  0.74 Ideal E     SI2      62.2    56  2761  5.8   5.84  3.62
## # … with 14,690 more rows
```

---

# Or operator

- If either one or the other statement needs to be satisfied use `|`

```r
filter(diamonds,(cut=='Ideal')|color=='E')
```

```
## # A tibble: 27,445 x 10
##    carat cut       color clarity depth table price     x     y     z
##    <dbl> <ord>     <ord> <ord>   <dbl> <dbl> <int> <dbl> <dbl> <dbl>
##  1  0.23 Ideal     E     SI2      61.5    55   326  3.95  3.98  2.43
##  2  0.21 Premium   E     SI1      59.8    61   326  3.89  3.84  2.31
##  3  0.23 Good      E     VS1      56.9    65   327  4.05  4.07  2.31
##  4  0.22 Fair      E     VS2      65.1    61   337  3.87  3.78  2.49
##  5  0.23 Ideal     J     VS1      62.8    56   340  3.93  3.9   2.46
##  6  0.31 Ideal     J     SI2      62.2    54   344  4.35  4.37  2.71
##  7  0.2  Premium   E     SI2      60.2    62   345  3.79  3.75  2.27
##  8  0.32 Premium   E     I1       60.9    58   345  4.38  4.42  2.68
##  9  0.3  Ideal     I     SI2      62      54   348  4.31  4.34  2.68
## 10  0.23 Very Good E     VS2      63.8    55   352  3.85  3.92  2.48
## # … with 27,435 more rows
```

---

# In operator

Another useful operator is `%in%`

```r
filter(diamonds,
       (cut %in% c('Ideal','Fair')))
```

```
## # A tibble: 23,161 x 10
##    carat cut   color clarity depth table price     x     y     z
##    <dbl> <ord> <ord> <ord>   <dbl> <dbl> <int> <dbl> <dbl> <dbl>
##  1  0.23 Ideal E     SI2      61.5    55   326  3.95  3.98  2.43
##  2  0.22 Fair  E     VS2      65.1    61   337  3.87  3.78  2.49
##  3  0.23 Ideal J     VS1      62.8    56   340  3.93  3.9   2.46
##  4  0.31 Ideal J     SI2      62.2    54   344  4.35  4.37  2.71
##  5  0.3  Ideal I     SI2      62      54   348  4.31  4.34  2.68
##  6  0.33 Ideal I     SI2      61.8    55   403  4.49  4.51  2.78
##  7  0.33 Ideal I     SI2      61.2    56   403  4.49  4.5   2.75
##  8  0.33 Ideal J     SI1      61.1    56   403  4.49  4.55  2.76
##  9  0.23 Ideal G     VS1      61.9    54   404  3.93  3.95  2.44
## 10  0.32 Ideal I     SI1      60.9    55   404  4.45  4.48  2.72
## # … with 23,151 more rows
```

---

# Not operator

Use `!` as not

```r
filter(diamonds,
       !(cut %in% c('Ideal','Fair')))
```

```
## # A tibble: 30,779 x 10
##    carat cut       color clarity depth table price     x     y     z
##    <dbl> <ord>     <ord> <ord>   <dbl> <dbl> <int> <dbl> <dbl> <dbl>
##  1 0.21  Premium   E     SI1      59.8    61   326  3.89  3.84  2.31
##  2 0.23  Good      E     VS1      56.9    65   327  4.05  4.07  2.31
##  3 0.290 Premium   I     VS2      62.4    58   334  4.2   4.23  2.63
##  4 0.31  Good      J     SI2      63.3    58   335  4.34  4.35  2.75
##  5 0.24  Very Good J     VVS2     62.8    57   336  3.94  3.96  2.48
##  6 0.24  Very Good I     VVS1     62.3    57   336  3.95  3.98  2.47
##  7 0.26  Very Good H     SI1      61.9    55   337  4.07  4.11  2.53
##  8 0.23  Very Good H     VS1      59.4    61   338  4     4.05  2.39
##  9 0.3   Good      J     SI1      64      55   339  4.25  4.28  2.73
## 10 0.22  Premium   F     SI1      60.4    61   342  3.88  3.84  2.33
## # … with 30,769 more rows
```

---
# Your turn

- Write R code for the following:
  - `price` greater than 2000 and `carat` less than 3.
  - `price` greater than 2000 and `cut` either Very Good, Premium or Ideal.
  - `carat` less than 2 or price greater than 500.
  - `carat` less than 2 and `cut` not equal to Premium.
---
class: inverse, center, middle
# Creating New Variables

---

# Mpg

Mpg is also a tibble

```r
mpg
```

```
## # A tibble: 234 x 11
##    manufacturer model    displ  year   cyl trans   drv     cty   hwy fl    class
##    <chr>        <chr>    <dbl> <int> <int> <chr>   <chr> <int> <int> <chr> <chr>
##  1 audi         a4         1.8  1999     4 auto(l… f        18    29 p     comp…
##  2 audi         a4         1.8  1999     4 manual… f        21    29 p     comp…
##  3 audi         a4         2    2008     4 manual… f        20    31 p     comp…
##  4 audi         a4         2    2008     4 auto(a… f        21    30 p     comp…
##  5 audi         a4         2.8  1999     6 auto(l… f        16    26 p     comp…
##  6 audi         a4         2.8  1999     6 manual… f        18    26 p     comp…
##  7 audi         a4         3.1  2008     6 auto(a… f        18    27 p     comp…
##  8 audi         a4 quat…   1.8  1999     4 manual… 4        18    26 p     comp…
##  9 audi         a4 quat…   1.8  1999     4 auto(l… 4        16    25 p     comp…
## 10 audi         a4 quat…   2    2008     4 manual… 4        20    28 p     comp…
## # … with 224 more rows
```

---

# Mutate

- Suppose we are interested in fuel efficiency (the variables `cty` and `hwy`).
- These are measured in miles per gallon, but we want to convert into metric units.
- One mile per gallon equals 0.425144 km per litre

```r
mpgSel<-select(mpg,cty,hwy)
mpgMet<-mutate(mpgSel,ctyMetric=0.425144*cty,
                  hwyMetric=0.425144*hwy)
```
---

# Result

```
## # A tibble: 234 x 4
##      cty   hwy ctyMetric hwyMetric
##    <int> <int>     <dbl>     <dbl>
##  1    18    29      7.65      12.3
##  2    21    29      8.93      12.3
##  3    20    31      8.50      13.2
##  4    21    30      8.93      12.8
##  5    16    26      6.80      11.1
##  6    18    26      7.65      11.1
##  7    18    27      7.65      11.5
##  8    18    26      7.65      11.1
##  9    16    25      6.80      10.6
## 10    20    28      8.50      11.9
## # … with 224 more rows
```
---

# The pipe operator

- The fact that the input and output are always data frames makes the pipe operator useful.
--

- Simply use `%>%` to chain commands together.
--

- Sometimes it is clearer to use `->` rather than use `<-` for assignment.
--

```r
c(1,12,4)%>%
  mean%>%
  sqrt->out
str(out)
```

```
##  num 2.38
```
---

#Pipes and dplyr

This code
--

```r
mpgSel<-select(mpg,cty,hwy)
mpgMet<-mutate(mpgSel,ctyMetric=0.425144*cty,
                  hwyMetric=0.425144*hwy)
```
--

does the same as this code
--

```r
select(mpg,cty,hwy)%>%
  mutate(ctyMetric=0.425144*cty,
                  hwyMetric=0.425144*hwy)->mpgMet
```

---
class: inverse, middle, center

# Grouping

---

# Group by function

- A powerful function in `dplyr` is the `group_by` function.
--

- Used in combination with `summarise`, it can construct  new datasets.
--

- Consider the `txhousing` dataset.  There is monthly data for each city.
--

- Suppose the aim is to find total number of sales for all cities in a year.

---

#Texas Housing

```r
txhousing
```

```
## # A tibble: 8,602 x 9
##    city     year month sales   volume median listings inventory  date
##    <chr>   <int> <int> <dbl>    <dbl>  <dbl>    <dbl>     <dbl> <dbl>
##  1 Abilene  2000     1    72  5380000  71400      701       6.3 2000
##  2 Abilene  2000     2    98  6505000  58700      746       6.6 2000.
##  3 Abilene  2000     3   130  9285000  58100      784       6.8 2000.
##  4 Abilene  2000     4    98  9730000  68600      785       6.9 2000.
##  5 Abilene  2000     5   141 10590000  67300      794       6.8 2000.
##  6 Abilene  2000     6   156 13910000  66900      780       6.6 2000.
##  7 Abilene  2000     7   152 12635000  73500      742       6.2 2000.
##  8 Abilene  2000     8   131 10710000  75000      765       6.4 2001.
##  9 Abilene  2000     9   104  7615000  64500      771       6.5 2001.
## 10 Abilene  2000    10   101  7040000  59300      764       6.6 2001.
## # … with 8,592 more rows
```
---

#Group by and summarise

```r
txhousing%>%
  group_by(year)%>%
  summarise(TotalSales=
              sum(sales,na.rm = TRUE))->TotSales
TotSales
```

```
## # A tibble: 16 x 2
##     year TotalSales
##    <int>      <dbl>
##  1  2000     222483
##  2  2001     231453
##  3  2002     234600
##  4  2003     253909
##  5  2004     283999
##  6  2005     316046
##  7  2006     347733
##  8  2007     327701
##  9  2008     276664
## 10  2009     255254
## 11  2010     243014
## 12  2011     246356
## 13  2012     287052
## 14  2013     335094
## 15  2014     345720
## 16  2015     208124
```

---

#Group by two variables

- In earlier years, data for some cities is unavailable and is filled in as `NA`.
--

- The option `na.rm=TRUE` removes missing data before taking the sum.
--

- Next, suppose we want to get the yearly total for each city.
--

- Need to group by `city` and `year`.

---
#Group by and summarise

```r
txhousing%>%
  group_by(year,city)%>%
  summarise(TotalSales=
              sum(sales,na.rm = TRUE))->TotSales
TotSales
```

```
## # A tibble: 736 x 3
## # Groups:   year [16]
##     year city                  TotalSales
##    <int> <chr>                      <dbl>
##  1  2000 Abilene                     1375
##  2  2000 Amarillo                    2076
##  3  2000 Arlington                   4969
##  4  2000 Austin                     18621
##  5  2000 Bay Area                    4884
##  6  2000 Beaumont                    1781
##  7  2000 Brazoria County             1060
##  8  2000 Brownsville                  486
##  9  2000 Bryan-College Station       1356
## 10  2000 Collin County              10000
## # … with 726 more rows
```

---
#Your turn

- In the `diamonds` dataset, find the average price for each cut of diamond.
--

- In the `diamonds` dataset, find the average price for each cut of diamond given that price in above 2000.
--

- In the `mpg` dataset find the average fuel efficiency in the city of in each year.
--

- In the `mpg` dataset, consider Toyota, Nissan and Honda. Find the value of `hwy` for each of these manufacturer's most fuel efficient cars on the highway.

---

# About databases
---

# Codd's Model

- Many of the functions in `dplyr` are built on similar functions in the SQL language that is used to query databases.
--

- SQL is itself built upon (but not exactly the same) as a theoretical model known as Codd's model.
--

- An important aspect of this model is the first normal form.
--

- This also provide some guidelines for good data management.

---

# Example

Suppose we have the following database:

<table class="table" style="font-size: 24px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> Name </th>
   <th style="text-align:left;"> DoB </th>
   <th style="text-align:left;"> Email </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Ahmed </td>
   <td style="text-align:left;"> 1994/03/01 </td>
   <td style="text-align:left;"> ahmed@personal.com </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Bin </td>
   <td style="text-align:left;"> 1954/12/23 </td>
   <td style="text-align:left;"> bin@me.com; bin@work.com </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Carol </td>
   <td style="text-align:left;"> 1982/07/16 </td>
   <td style="text-align:left;"> carol@mailcom </td>
  </tr>
</tbody>
</table>

---

#Problems

- Carol's entry not a valid email.
  + A function can be written to check and remove this.
--

- A bigger problem is that the email entry is not **atomic**.  There are two emails for Bin.
  - If code is written to check if the email is valid, then this code will also fail for Bin.
--

- On the next slide is a solution.

---

# Possible solution

<table class="table" style="font-size: 24px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> Name </th>
   <th style="text-align:left;"> DoB </th>
   <th style="text-align:left;"> Email1 </th>
   <th style="text-align:left;"> Email2 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Ahmed </td>
   <td style="text-align:left;"> 1994/03/01 </td>
   <td style="text-align:left;"> ahmed@personal.com </td>
   <td style="text-align:left;"> NA </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Bin </td>
   <td style="text-align:left;"> 1954/12/23 </td>
   <td style="text-align:left;"> bin@me.com </td>
   <td style="text-align:left;"> bin@work.com </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Carol </td>
   <td style="text-align:left;"> 1982/07/16 </td>
   <td style="text-align:left;"> carol@mailcom </td>
   <td style="text-align:left;"> NA </td>
  </tr>
</tbody>
</table>
---

#Problems

- This solution forces an ordering between Email1 and Email2 that may be arbitrary.
--

- Also, a new entry into the database may be:
  + Name: Deepal
  + DoB: 1987/04/23
  + Email: deepal@work.com; deepal@me.com; coolgirl87@me.com
--

- The entire database needs to be changed to allow for three email addresses
---

# Solution

<table class="table" style="font-size: 24px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> Name </th>
   <th style="text-align:left;"> DoB </th>
   <th style="text-align:left;"> Email </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Ahmed </td>
   <td style="text-align:left;"> 1994/03/01 </td>
   <td style="text-align:left;"> ahmed@personal.com </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Bin </td>
   <td style="text-align:left;"> 1954/12/23 </td>
   <td style="text-align:left;"> bin@me.com </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Bin </td>
   <td style="text-align:left;"> 1954/12/23 </td>
   <td style="text-align:left;"> bin@work.com </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Carol </td>
   <td style="text-align:left;"> 1982/07/16 </td>
   <td style="text-align:left;"> carol@mailcom </td>
  </tr>
</tbody>
</table>

Deepal can be added as

<table class="table" style="font-size: 24px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> Name </th>
   <th style="text-align:left;"> DoB </th>
   <th style="text-align:left;"> Email </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Deepal </td>
   <td style="text-align:left;"> 1987/04/23 </td>
   <td style="text-align:left;"> deepal@work.com </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Deepal </td>
   <td style="text-align:left;"> 1987/04/23 </td>
   <td style="text-align:left;"> deepal@me.com </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Deepal </td>
   <td style="text-align:left;"> 1987/04/23 </td>
   <td style="text-align:left;"> coolgirl87@me.com </td>
  </tr>
</tbody>
</table>

---

# First Normal Form

- This is only a very very superficial treatment of *database normalization*.
--

- The emphasis here is getting data into a form that is easily workable and minimises the chance for mistakes.
--

- It should be noted that the concept of *atomicity* is itself controversial and can be ambiguous.
--

- The main message is to think carefully about how you get data into an easily workable and robust form.

---

# Reshaping

---

# Long v wide format

- Generally attempt to have one column per variable.
--

- Sometimes the meaning of a *variable* is ambiguous.
--

- In many cases it is easier to use `ggplot2` if the data are reshaped into a different form.
--

- We investigate using the `economics` data

---

# Economics wide

```r
economics
```

```
## # A tibble: 574 x 6
##    date         pce    pop psavert uempmed unemploy
##    <date>     <dbl>  <dbl>   <dbl>   <dbl>    <dbl>
##  1 1967-07-01  507. 198712    12.6     4.5     2944
##  2 1967-08-01  510. 198911    12.6     4.7     2945
##  3 1967-09-01  516. 199113    11.9     4.6     2958
##  4 1967-10-01  512. 199311    12.9     4.9     3143
##  5 1967-11-01  517. 199498    12.8     4.7     3066
##  6 1967-12-01  525. 199657    11.8     4.8     3018
##  7 1968-01-01  531. 199808    11.7     5.1     2878
##  8 1968-02-01  534. 199920    12.3     4.5     3001
##  9 1968-03-01  544. 200056    11.7     4.1     2877
## 10 1968-04-01  544  200208    12.3     4.6     2709
## # … with 564 more rows
```

---

# Economics long

```r
economics_long
```

```
## # A tibble: 2,870 x 4
##    date       variable value  value01
##    <date>     <chr>    <dbl>    <dbl>
##  1 1967-07-01 pce       507. 0
##  2 1967-08-01 pce       510. 0.000265
##  3 1967-09-01 pce       516. 0.000762
##  4 1967-10-01 pce       512. 0.000471
##  5 1967-11-01 pce       517. 0.000916
##  6 1967-12-01 pce       525. 0.00157
##  7 1968-01-01 pce       531. 0.00207
##  8 1968-02-01 pce       534. 0.00230
##  9 1968-03-01 pce       544. 0.00322
## 10 1968-04-01 pce       544  0.00319
## # … with 2,860 more rows
```

---

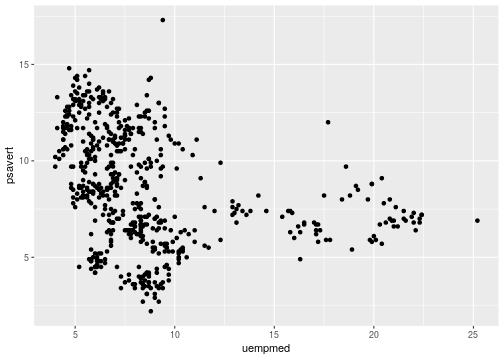

# Use wide

```r
ggplot(economics,aes(x=uempmed,y=psavert))+
  geom_point()
```

---

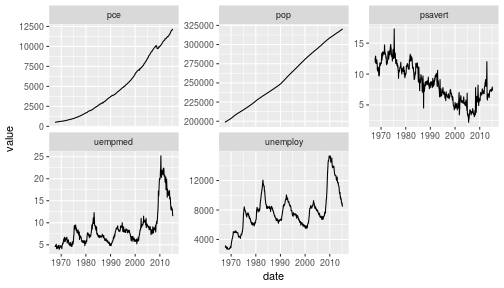

# Use long

```r
ggplot(economics_long,aes(x=date,y=value))+
  geom_line()+
  facet_wrap(~variable, scales = 'free_y')
```

We will learn about `facet_wrap` later.

---

# From wide to long

```r
pivot_longer(economics,
             cols = -date,
             names_to = 'Variable',
             values_to = 'Value')->long
long
```

```
## # A tibble: 2,870 x 3
##    date       Variable    Value
##    <date>     <chr>       <dbl>
##  1 1967-07-01 pce         507.
##  2 1967-07-01 pop      198712
##  3 1967-07-01 psavert      12.6
##  4 1967-07-01 uempmed       4.5
##  5 1967-07-01 unemploy   2944
##  6 1967-08-01 pce         510.
##  7 1967-08-01 pop      198911
##  8 1967-08-01 psavert      12.6
##  9 1967-08-01 uempmed       4.7
## 10 1967-08-01 unemploy   2945
## # … with 2,860 more rows
```

---

# Pivot Longer

- The `names_to` will be a variable of column names.
--

- The `values_to` will be a variable that stores the body of the data frame.
--

- Use `-` in the `cols` argument to exclude variable(s).
--

- Here this was done for the `date` variable.

---

#From long to wide

```r
pivot_wider(economics_long,
            id_cols = date,
            names_from = variable,
            values_from = value)->wide
wide
```

---

# Pivot Wider

- The `names_from` will be a variable including column names of the new data frame.
--

- The `values_from` will be a variable that will become the body of the new data frame.
--

- The `id_cols` will be the variables used to identify the observations in the new data frame.

---
class: inverse, center, middle

# Joins

---

# Join

- Often we work with two data tables.
--

- We will consider an example with two datasets
--

+ Electricity price, demand and export
  + Maximum Temperature, Wind Direction and Wind Speed
--

- We want to combine these two datasets.

---

# Energy data

```r
energy<-read_csv('data/energydata.csv')
energy
```

```
## # A tibble: 1,960 x 6
##    Date       Day   State Price Demand NetExport
##    <date>     <chr> <chr> <dbl>  <dbl>     <dbl>
##  1 2018-07-15 Sun   NSW    51.7  7564.   -1231.
##  2 2018-07-16 Mon   NSW    87.9  8966.     -18.6
##  3 2018-07-17 Tue   NSW    62.8  8050.    -643.
##  4 2018-07-18 Wed   NSW    54.5  7840.    -742.
##  5 2018-07-19 Thu   NSW    64.2  8168.     -40.6
##  6 2018-07-20 Fri   NSW    60.9  8254.     318.
##  7 2018-07-21 Sat   NSW    59.1  7427.    -550.
##  8 2018-07-22 Sun   NSW    56.0  7492.   -2054.
##  9 2018-07-23 Mon   NSW    60.7  8382.    -657.
## 10 2018-07-24 Tue   NSW    60.5  7802.    -322.
## # … with 1,950 more rows
```

---

# Weather data

```r
weather<-read_csv('data/weather.csv')
weather
```

```
## # A tibble: 1,825 x 5
##    Date       MaxTemp WindDir WindSpeed State
##    <date>       <dbl> <chr>       <dbl> <chr>
##  1 2018-07-01    15.4 S               6 NSW
##  2 2018-07-02    15   SSW             8 NSW
##  3 2018-07-03    16.5 S              15 NSW
##  4 2018-07-04    19.7 NNE             6 NSW
##  5 2018-07-05    25.1 NNW             5 NSW
##  6 2018-07-06    23.9 WNW            11 NSW
##  7 2018-07-07    15.7 WNW             8 NSW
##  8 2018-07-08    16.7 W              12 NSW
##  9 2018-07-09    15   S               8 NSW
## 10 2018-07-10    16.1 ESE             3 NSW
## # … with 1,815 more rows
```

---

# Joined data

```r
all_data<-inner_join(energy,weather)
```

```
## Joining, by = c("Date", "State")
```

```r
all_data
```

```
## # A tibble: 1,755 x 9
##    Date       Day   State Price Demand NetExport MaxTemp WindDir WindSpeed
##    <date>     <chr> <chr> <dbl>  <dbl>     <dbl>   <dbl> <chr>       <dbl>
##  1 2018-07-15 Sun   NSW    51.7  7564.   -1231.     18   NW              2
##  2 2018-07-16 Mon   NSW    87.9  8966.     -18.6    18.5 W               7
##  3 2018-07-17 Tue   NSW    62.8  8050.    -643.     22.5 WNW             9
##  4 2018-07-18 Wed   NSW    54.5  7840.    -742.     20.8 SSW             1
##  5 2018-07-19 Thu   NSW    64.2  8168.     -40.6    20.8 NNW             1
##  6 2018-07-20 Fri   NSW    60.9  8254.     318.     15.5 W              13
##  7 2018-07-21 Sat   NSW    59.1  7427.    -550.     16.3 SE              4
##  8 2018-07-22 Sun   NSW    56.0  7492.   -2054.     15.9 NE              6
##  9 2018-07-23 Mon   NSW    60.7  8382.    -657.     19.9 NW              4
## 10 2018-07-24 Tue   NSW    60.5  7802.    -322.     24.4 ENE             3
## # … with 1,745 more rows
```

---

# Types of join

- Using `inner_join(x,y)` returns all rows from `x` with matching values in `y`.
--

- Using `left_join(x,y)` returns all rows from `x` with matching values in `y`, with `NA` if there is no match.
--

- Using `right_join(x,y)` returns all rows from `y` with matching values in `x`, with `NA` if there is no match.
--

- Using `full_join(x,y)` returns all rows from `x` or `y` with `NA` if there is no match.
